MADELL 8502D

Price: $205.00

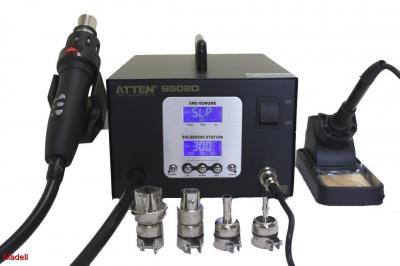

(8502D with four nozzles)




Combined tool for both through hole and surface mount components.

l          2 in 1 digital lead-free rework station

l          Dual LED display, one for soldering iron and another for hot air

l          PID temperature controlling circuit makes a more precise temperature readout

l          Fast heating up, sleep and automatic shut down

l          Hot air temperature: 100°C to 500°C, 800W

l          Solder iron tip temperature: 200°C to 480°C, 50W

l          Airflow 23 L/min (max)

l          Three shortcut keys for temperature and air flow presets

l          Fault Detection

l          110V power supply, 220V models available at same price

l          Accepts popular 20mm diameter hot air nozzles


Hot air nozzles and solder iron tips can be purchased here.


Included tip and hot air nozzles:

Soldering tip: 900M-T-SI (fine tip)




Hot air nozzle A1125

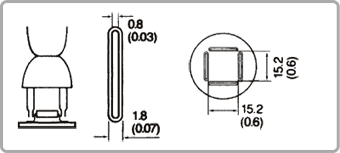

Hot air nozzle A1126

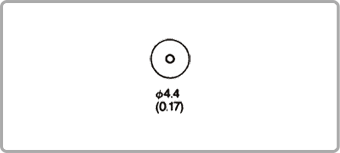

Hot air nozzle A1130




Hot air nozzle A1130




Specifications





Detail Atten AT8502D Rework Station Soldering Station
Input Voltage 110V AC 50 Hz
Power Consumption 900 W (max) Air heating 800 W (max)  Soldering Iron 50W
Pump (membrane) 40W
Temperature  100 - 500°C 200 - 480°C
Temperature Unit  °C/ °F changeable changeable
Temperature Accuracy 10°C 10°C
Calibration Range 50 to -50°C
1. 200°C, 40% flow  1. 200°C
Factory Presets 2. 300°C, 60% flow  2. 300°C
3. 400°C, 80% flow  3. 400°C
Range of Air Volume 20% - 100%
Dimensions (WxHxD) 18.7 cm x 12.6 cm x 24.5 cm
Shipping Weight 13 lb


Packing List:
1x SMD rework station
Set of 4 nozzles
Bracket
Soldering handle
Power cable
User's manual

\
