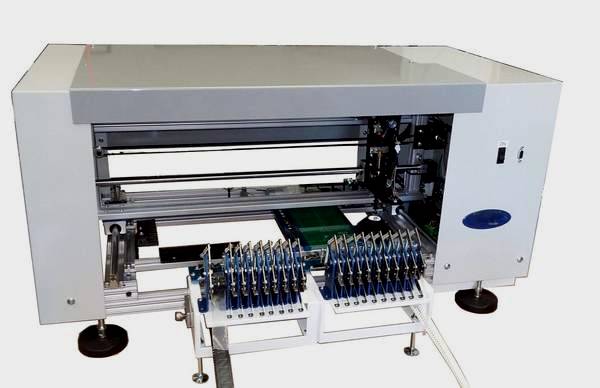

Lab-X1 Automatic Pick and Place Machine
Small Machine, Big Functions



 Lab-X Automatic Pick Place Machine
$5950



Low cost full loaded small desktop automatic pick and place machine

Specifications:
  • Designed for lab, school or personal use.
  • Affordable, light weight and easy to use.
  • Full equipped. Comes with digital color vision, automatic nozzle changer, one teaching camera mounted on the head, one up looking vision camera to align parts
  • Placement of 0402 and bigger, works for different IC's, TQFP, BGA, SOP,etc.
  • Place fine pitch IC's to 25x25mm size, 0.4mm pitch or 30x30mm, 0.5mm pitch with optioanal PLACER-F1
  • Sophisticated software, advanced Smart vision system
  • Detachable feeders, easy to exchange. Included feeders: one SX-3 8mm, nine SX-2 8mm
  • Max feeder capacity: 25x8mm feeders
  • Holds up to 7"x8" PCB (can hold 7"x12" if feeder quantity is reduced).
  • Speed is around 1700 parts per hour.
  • Fully programmable digital Z-axis and Theta rotation angles
  • X and Y axes 0.02mm resolution, 0.045° rotational resolution
  • No programming manual pick place mode
  • Support loose part pick place
  • Not very powerful stepper motors, safe for students or non-professionals to use
  • Automatic PCB board position correction with fiducial recognition
  • One click conversion of PCB software exported files
  • 12 month warranty - parts & labor
  • Machine dimension: 38"x18"x17.5", weight: 60 pounds
  • Great entry level machine; fit perfectly for tight budget
  • Made in USA

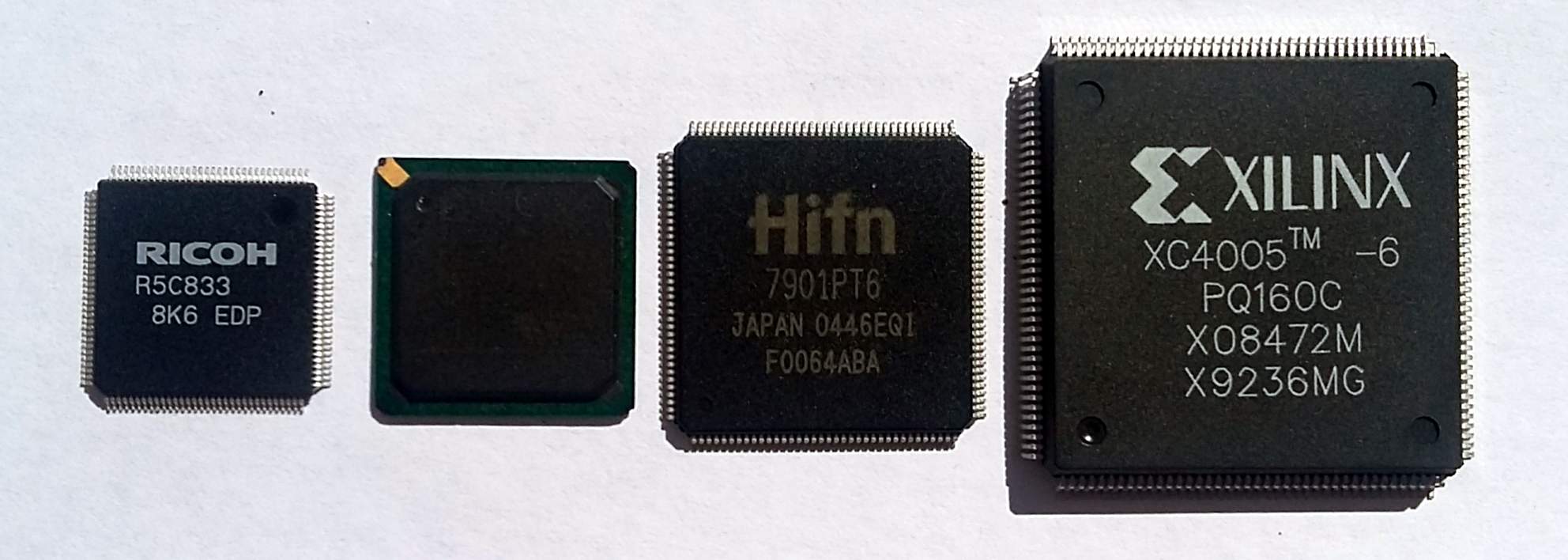

Example Fine Pitch IC's that Lab-X machines can place

Options:
  • Solder paste dispensers: choice of pneumatic or motorized (vision assistance)
  • Upgrade to work with 0201 parts
  • Additional up looking vision camera
  • Lab-X2 with high speed non-stop fly-over camera
  • Computer
  • Additional feeders
  • Vacuum pump
  • High resolution digital cameras (standard 640x480 pixels), many choices from 1280x960 pixels and up
Free 3D printer STL models for 8mm, 12mm, 16mm, 24mm tape feeders and IC loose part tray (please ask for them)

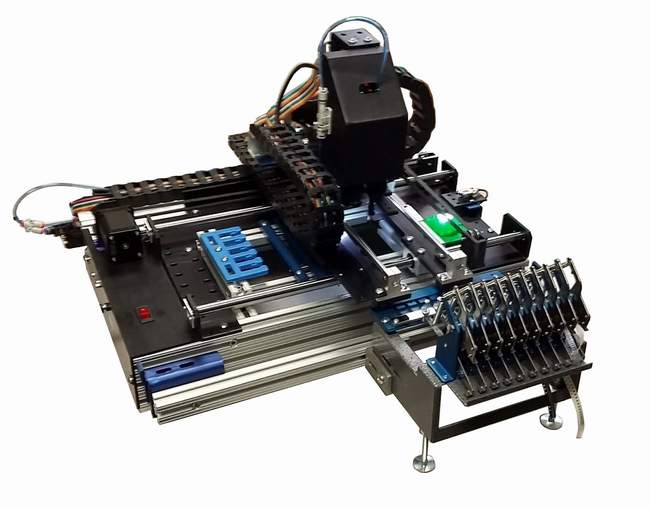

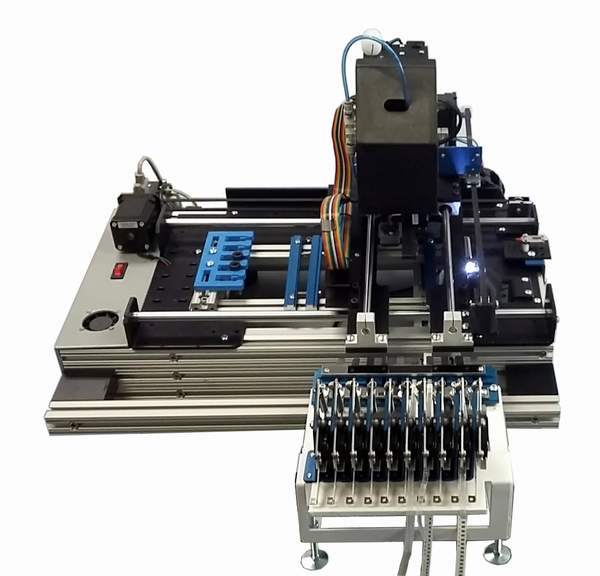

Lab-X3 Desk Corner Automatic Pick Place Machine
$4950

Lab-X3 Specifications:
  • Designed for lab, school or personal use.
  • Affordable, light weight and easy to use.
  • Comes with digital color vision, automatic nozzle changer, one teaching camera mounted on the head, one up looking vision camera to align parts
  • Placement of 0402 and bigger, works for different IC's, TQFP, BGA, SOP,etc.
  • Sophisticated software, advanced Smart vision system
  • Detachable feeders, easy to exchange. Included feeders: one SX-3 8mm, nine SX-2 8mm
  • Max feeder capacity: 15x8mm feeders
  • Holds up to 5"x5" PCB
  • Speed is around 800 parts per hour.
  • Fully programmable digital Z-axis and Theta rotation angles
  • X and Y axes 0.0125mm resolution, 0.056° rotational resolution
  • Not very powerful stepper motors, safe for students or non-professionals to use
  • Automatic PCB board position correction with fiducial recognition
  • One click conversion of PCB software exported files
  • 12 month warranty - parts & labor
  • Machine dimension: 21"x18"x15", weight: 40 pounds. Great entry level machine; fit perfectly for tight budget
  • Made in USA

Options:
  • Computer
  • Additional feeders
  • Upgrade to work with 0201 parts
  • Vacuum pump

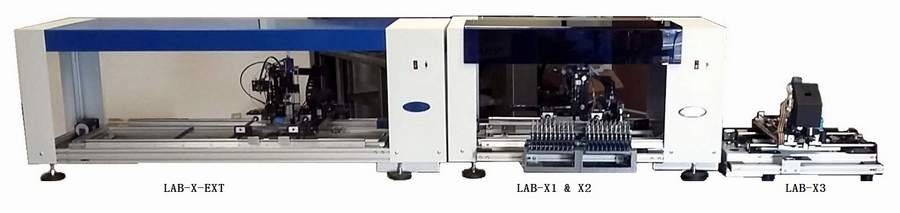

Lab-X-Ext Specifications: all the same as Lab-X1 and Lab-X3 except the following
  • Max feeder capacity: 50~120 8mm feeders
  • Machine dimension: 55"x18"x17.5" to 72"x18"x19"


$7650







Lab-X1 automatic pick and place machine Youtube Video (machine comes with enclosure)


LED panel assembling with Lab-X1




Lab-X2 with Fly-Over Camera
