LCD Microscopes with USB computer connection


Price: $589.00
(pricer cut)

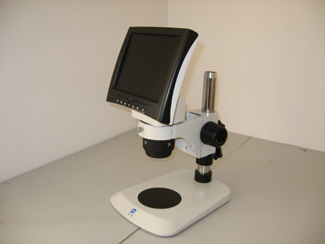

DVST60N LCD MICROSCOPE

Price: $1095.00

Device

1/3

1/3

Horizontal Resolution

480 TV line

480 TV line

Pixels

768(H)X490(V)

768(H)X576(V)

Scanning System

525 lines/ 60 frames/ sec.

625 lines/ 50 frames/ sec.

White Balance

Can be switched between auto white balance and hand white balance

Back light compensation

Auto

Signal-to-Noise

More than 46db

Gamma Characteristics

0.45

Minimum illumination

3.1ux

Input voltage

12V DC(9V-14V)

Power consumption

Less than 1.85W

Dimension

800X600

800X480

640X480

Pixel Space Between

0.213mm

0.253

0.253

Visual Angle

170/170(H/V)

Horizontal

30~61 KHz

Vertical

60~75 Hz

Color

16,777,216 colors

Highest mode

1024X768@75Hz

Sync Video Signal

H/V Separate,TTL,P or N.0.7Vp-p@75 ohm

Color System

PAL/NTSC4.43/NTSC3.58/SECAM

Sound system

BG/DK/I/M

Video Output

1.0Vp-p@75ohm

Audio Input

500mVrms

Power Supply

DC 12V

Power consumption

9W

11W

11W

Energy-saving

<1.0W

Operating temperature

10C~40C(50F~104F)

Operating humidity

10%~80%

Storage temperature

-25C~-45C(-13F~113F)

Storage humidity

5%~95%

                           Model Parts

4-DVST60N

Head

Objective magnification

1X,2X  (3X,4X)

Working distance

100mm

Observation angle

0~45

Base

Set the head

Mount the head in the bracket hole whose diameter is

F76mm

Focusing device

The degree of tightness is adjustable by rotating the focusing knob.

White/black plate

Diameter inside hole: 100mm

Clips

Put it on the base from top
