Specification & Feature
| Item |
Normal Dimensions |
Feature |

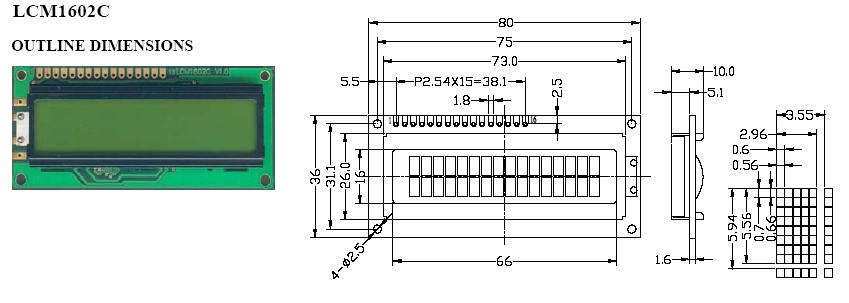

| Module size |
80x36x10/15 |
LCD Type & Color |
STN: yellow-Green, Gray, FSTN |
| View Area |
66x16 |
View Angle |
6 O' clock, 12 O' clock |
| Character Pitch |
3.55x5.94 |
Display Type |
Positive Type |
| Character Size |
2.96x5.56 |
Control IC & Package |
KS0066, COB |
| Character Font |
5x8 |
Operating Temperature |
-20°C ~ 70°C |
| Dot Pitch |
0.60x0.70 |
Storage Temperature |
-30°C ~ 80°C |
| Dot Size |
0.56x0.66 |
Backlight |
LED, EL |
Eleetrical Characteristics
| Item |
Symbol |
Test Condition |
Typ. |
UNIT |
| Operating Voltage |
Vdd |
Ta = 25°C |
5.0 |
V |
| Supply Current |
Idd |
Ta = 25°C, Vdd = 5.0V |
1.25 |
mA |
Interface Pin Connection
| Pin |
Symbol |
Description |
| 1 |
VSS |
Ground for Logic |
| 2 |
VDD |
Power Supply for Logic |
| 3 |
VO |
Power Supply for LCD Drive |
| 4 |
RS |
Register selection |
| 5 |
R/W |
Read/write Selection |
| 6 |
E |
Enable Signal for LCM |
| 7-14 |
DB0-DB7 |
Data Bus Lines ( 0~7) |
| 15 |
LEDA |
Power Supply for Backlight(+) |
| 16 |
LEDK |
Power Supply for Backlight(-) |
|
