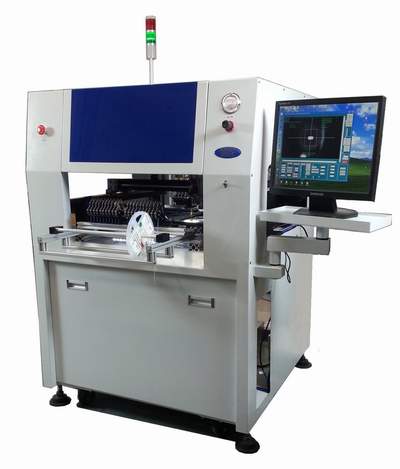

MCN-2012


Inside of MCN-2012

MCN-2012 High Precision and High Speed Pick and Place Machine
(precision ball screws, linear guides, AC servo motors)



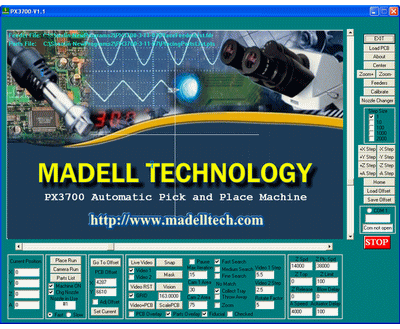

Windows graphic software


The MCN-2012 is a high performance and high precision automatic pick and place machine

Specifications:
  • 3000-3500 estimated pph(parts per hour) for single pick place head, Speed increases with the addtional heads
  • Available 1, 2, 4 and 6 heads
  • 450mm x 450mm working area
  • Placement of 0402 standard (upgrade for smaller parts)
  • Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts, software fly vision centering, included
  • Smart Vision: no need of reference or template pictures for most SMT parts; IC is centered as a whole part and also based on pins. Accurate and easy to use
  • Fly over camera is included for machines with 2, 4 and 6 pick and place heads
  • Fully programmable digital Z-axis and Theta rotation angles
  • X and Y axes 0.01mm resolution, 0.045° rotational resolution, THK/NSK linear actuators
  • Yaskawa AC servo motors on X and Y axes; upgradable to linear motors
  • 60 max. feeder capacity
  • Uses widely available and easily obtainable feeders
  • Loose parts pick up
  • Automatic PCB board position correction with fiducial recognition included
  • CAD file convert function
  • 12 month full factory warranty - parts & labor
  • Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file
  • 110V AC 60Hz, or 220 V AC, 50Hz, 1500 watts electrical
  • 60 psi shop air required
  • 300Kg
  • 880mm w x 1150mm d x 1400mm h
  • MADE IN USA
Options and Feeders:
  • Windows XP computer
  • Additional up looking cameras (only fixed lens can be used on the video camera for computer vision. Different cameras should be used for small and big parts for best results. Also working speed can be improved if more cameras are placed at different locations close to feeders)
  • Tape feeder carrier, required to use tape feeders
  • Automatic nozzle changer
  • First and second paste dispensing adaptor and control software
  • Hot air rework station mounting adaptor
  • Paste dispenser Gerber file translator software from Dockerty Electronics
  • Five channel vibratory feeder for tube parts
  • Digital vacuum sensor for higher pick up reliability
  • Vacuum pump
  • 8mm  Feeder: 8x2, 8x4 (paper or plastic)
  • 12mm  Feeder: 12x4, 12x8, 12x12
  • 16mm  Feeder: 16x8, 16x12
  • 24mm Feeder: 24x8, 24x12, 24x16
  • 32mm Feeder: 32x12, 32x16, 32x24
  • 44mm Feeder: 44x16, 44x24, 44x32
  • Option for SX-2 feeders


Youtube video: MCN-2012 automatic pick and place machine with dual pick place heads, capable of handling 1200mmx300mm
LED panels





Youtube video: MCN-2012 automatic pick and place machine
