MIX500 efficiently and evenly mixes the solder paste to a liquid state. It helps to achieve better results of stencil printing and reflowing processes. The use of the mixer also reduces the chances of absorbing air moisture as it is no longer necessary to remove the lid of the solder paste jar before the paste is actually used in production.

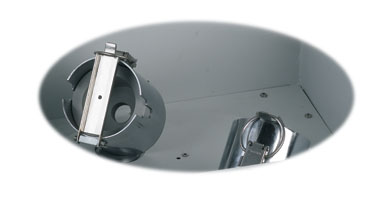

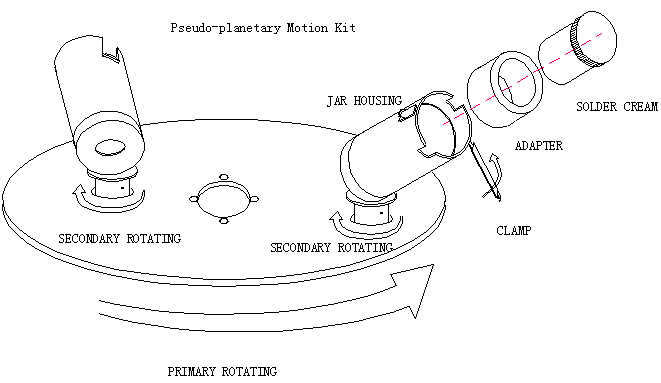

Tilted solder paste jar holders


  • Three-level safety protection design: locker, proximity switch and electromagnetic valve

  • The only maintenance is cleaning

  • LED indicators and warning buzzer


  • Power: AC 220V, 50hz, 60 W

  • Rotating speed: 400 RPM, 2nd rotation: 105 RPM

  • Working capacity: 500g x 2 jars

  • Time setting:0.1~9.9 Minutes

  • Dimension: 420x420x395mm (WxDxH)

  • Weight:33Kg

CEN3000 Glue Centrifuge

It is used to separate air from pink glue.

  • Rotating speed: 3000 RPM
  • Working capacity: 30mlx2 + 15mlx2
  • Time setting : 0.1~9.9Min.
  • Dimensions : 390x390x200 mm(WxDxH)
  • Weight :18 Kg
  • Power: 220V AC, 50Hz, 40W
  • The rotor can be customized.
