High Precision Automatic Pick and Place Machines Made with Linear Motors

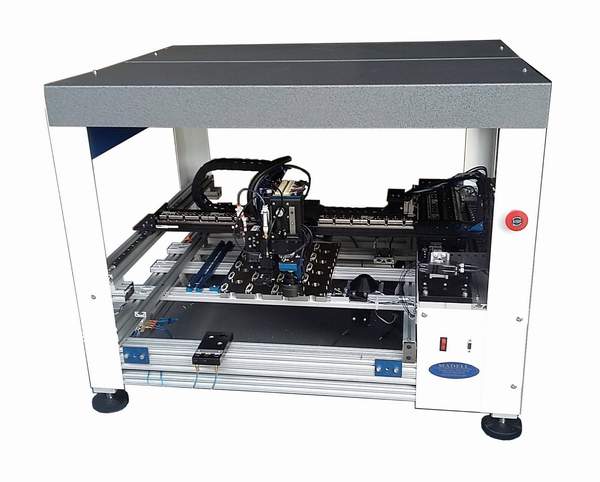

MLP-100 Automatic Pick Place Machine




Youtube video for MLP-100

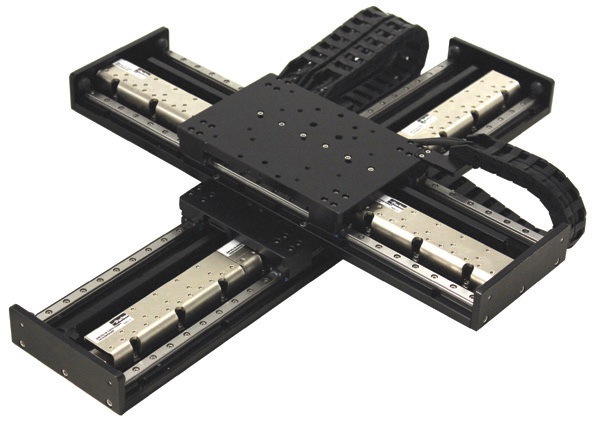

The MLP series pick and place machines are made with linear servo motors and linear encoders. Linear servo motors are ideal for pick place machines. They are precise, low maintenance, quite and fast. Linear servo motors come with linear encoders. Encoder precision (magnetic encoder standard, optical encoder optional) up to 0.01 µm

MLP-100 Features

  • Full automatic with computer vision alignment
  • Windows based control software, friendly user interface
  • X and Y axes with linear servo motors; repeat precision ± 0.2µm, positional accuracy up to 22 µm
  • Speed: 1800 parts/hour with SX-2 feeders; 2500 parts/hour with SX-3 or PX feeders if vision is enabled
  • Smallest parts: 0201 or smaller, wafer dies
  • Works with IC's: QFP, BGA, SOP, and wafer dies
  • Smart Vision: no need of reference or template pictures for most SMT parts; IC is centered as a whole part and also based on pins. Accurate and easy to use
  • Working area 450mm x 450mm
  • Includes: machine control box, software, one down looking teaching video camera, one up looking bottom view camera, computer vision hardware and software
  • Full programmable Z and rotation movement; Rotation resolution 0.045°
  • Max. feeder capacity: 60 8mm feeder for desk top model; 80 8mm feeder for floor model
  • Feeders for tapes/reels, tubes and trays. Loose parts and cut tapes are also supported
  • Comes with 10 SX-3 feeders
  • Automatic nozzle changer included
  • Desktop model is the standard model; floor model available
  • Machine size and weight: desktop model: 36"x30"x26", 120 pounds; floor model with aluminum stand: 36"x30"x56", 180 pounds; floor model with steel stand: 42"x46"x57", 350 pounds
  • Machine is fully assembled and tested
  • Made in USA

Options
:
  • Computer
  • Multiple pick place heads
  • Additional up looking cameras, 2 to 6
  • More tape feeders(SX-2,SX-3 and PX feeders), vibrate feeders, IC tray fixture
  • Bulk feeders
  • Fly vision
  • High resolution video cameras, selection of 1280x960 to 5120x5120 pixels
  • Paste dispenser, compressed air or motorized
  • Automatic IC tray changer
  • Fiber optical nozzle calibrator
  • Gast vacuum pump, from 24 inHg
  • Aluminum or steel machine stand

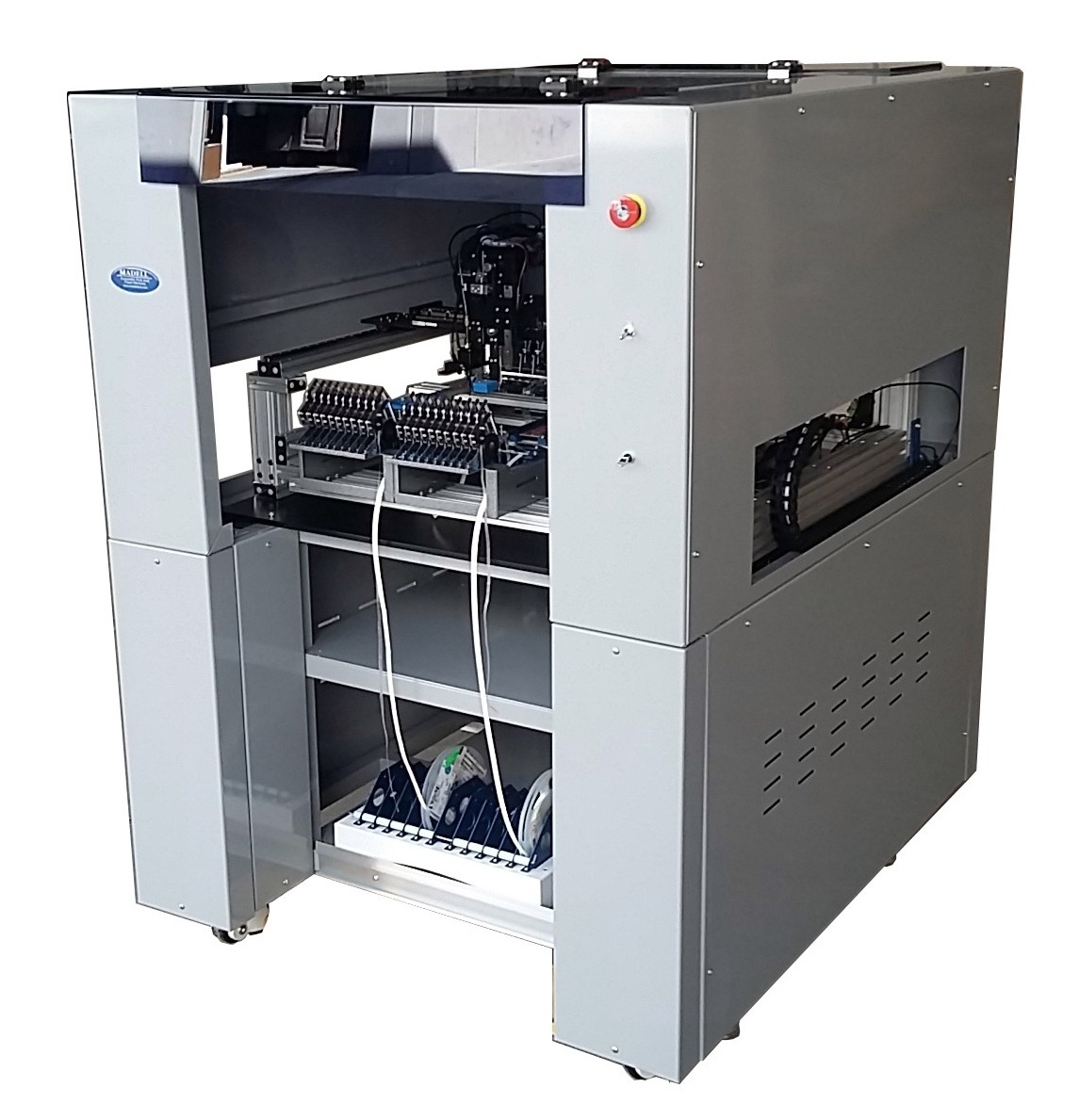

Floor Model of MLP-100

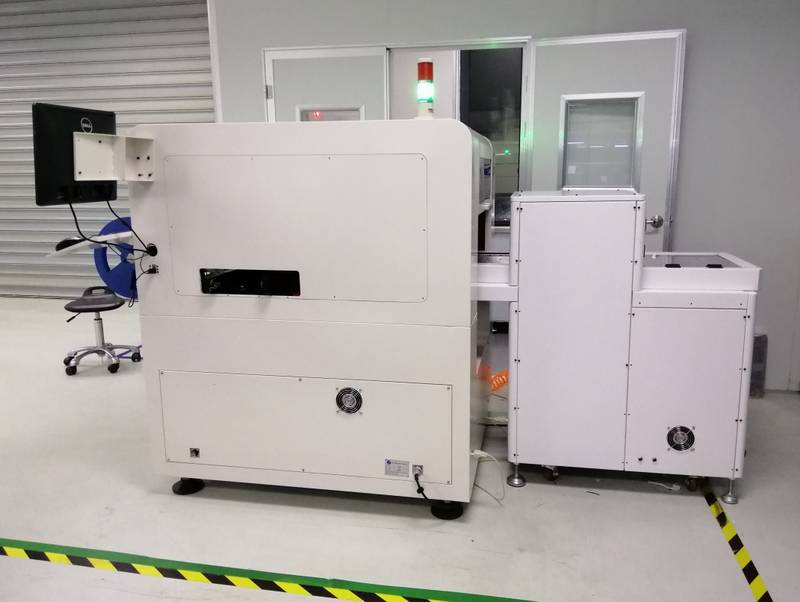

Automatic IC Tray Changer
