Pick and Place Machines for Sale

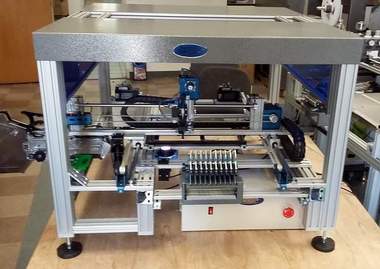

DP2006-2
New Upgraded Automatic Pick and Place Machine

Sale Price: $7795.00
  • New production
  • Comes with five 8mm SX-2 and five 8mm SX-3 feeders
  • Feeder capacity 40 8mm
  • High speed non-stop fly over vision alignment camera for fast operation and fixed up looking camera for big IC's
  • Automatic nozzle changer
  • Very big PCB area. Great for big LED panel or reguarl PCB assembling
  • Vision system: smart vision and gray level picture vision
  • Pick place file convertion function
  • Post assembling inspection function
  • Machine dimension: 36"x39"x28"
  • Made in USA
Options:
  • Additional feeders
  • Computer
  • Vacuum pump

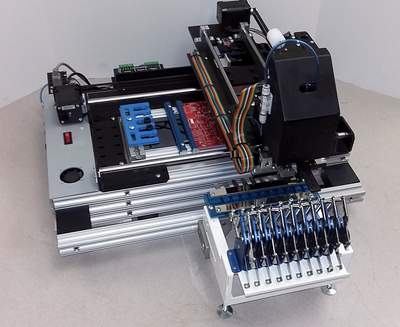

New Lab-X3

Desk Corner Automatic Pick and Place Machine
Sale Price: $4150.00

  • Great for lab, school or personal use.
  • Affordable, fast, precise, small, light weight and easy to use.
  • Comes with color vision, automatic nozzle changer, one teaching camera mounted on the head, one up looking vision camera to align parts
  • Placement of 0201 and bigger parts, works for different IC's, TQFP, BGA, SOP,etc.
  • Sophisticated software, advanced Smart vision system
  • Detachable feeders, easy to exchange. Included feeders: one SX-3 8mm, nine SX-2 8mm
  • Max feeder capacity: 15x8mm feeders
  • Holds up to 5"x5" PCB
  • Speed is around 2500 parts per hour.
  • Fully programmable digital Z-axis and Theta rotation angles
  • X and Y axes 0.0125mm resolution, 0.056 rotational resolution
  • Automatic PCB board position correction with fiducial recognition
  • One click conversion of PCB software exported files
  • 12 month warranty - parts & labor
  • Machine dimension: 21"x18"x15", weight: 40 pounds. Great entry level machine; fit perfectly for tight budget
  • Made in USA

Side View


Front View

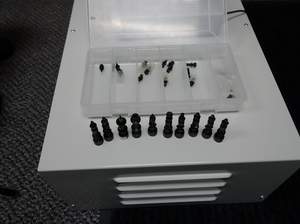

Control box and nozzles

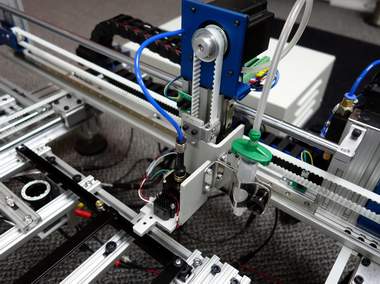

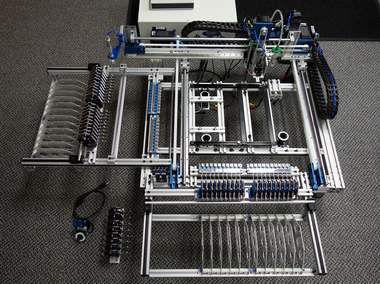

Used DP2006-2
Automatic Pick and Place Machine, Offered at $6500.00

  • Great condition, lots of upgrades
  • 5 position auto tool changer installed

  • Closed loop feedback stepper motors on XY axes

  • Solder paste dispensing is installed and configured

  • Vacuum sensor included

  • Total of 4 cameras installed (wired and ready for up to 6 cameras maximum)

  • 3 up looking 700TVL high speed cameras

  • Each up looking camera has independent LED ring light brightness control

  • 1 down looking camera with adjustable LED lighting control

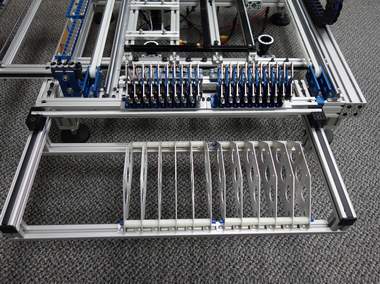

  • 40 C 8 mm SX2 Feeder 20 front and 20 left side with pneumatic actuator

  • 40 reel holders installed

New

Machine is at customer's location in midwest USA
