SPECIFICATIONS |
| |
MODEL
|
PSS-2005
|

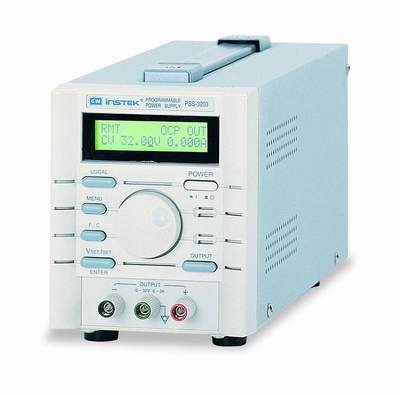

PSS-3203
|
| Output |
Voltage |
0~20V x 1 |
0~32V x1 |
| Current |
0~ 5A x 1 |
0~3A x 1 |
| OVP |
0~21V x 1 |
0~33V x 1 |
|
| Load
Effect |
Voltage |
<
3mV
|
| Current |
<
3mA
|
|
| Source
Effect |
Voltage |
<
3mV
|
| Current |
<
3mA
|
|
|
Resolution |
Voltage |
10mV |
| Current |
1mA ( 2mA rating current > 3.5A ) |
| OVP |
10mV |
|
| Program Accuracy ( 25
+ 5°C ) |
Voltage |
< 0.05%
+ 10mV |
| Current |
< 0.1% +
5mA |
| OVP |
< 0.05%
+ 10mV |
|
| Ripple & Noise ( 20Hz
~ 20MHz ) |
Voltage |
Ripple：< 1mVrms /
3mVp-p
Noise：< 2mVrms / 30mVp-p |
| Current |
< 3mArms
( < 5mArms rating current > 3.5A ) |
|
|
Temperature |
Voltage |
< 100ppm
+ 3mV |
| Coefficient( 0 ~ 40°C
) |
Current |
< 100ppm
+ 3mA |
|
| Readback Resolution |
Voltage |
10mV |
| Current |
1mA ( 2mA rating current > 3.5A ) |
|
| Readback Accuracy ( 25 + 5°C
) |
Voltage |
< 0.05%
+ 10mV |
| Current |
< 0.1% +
5mA |
|
| Readback Temperature |
Voltage |
< 100ppm
+ 10mV |
| Coefficient
|
Current |
< 150ppm
+ 10mA |
|
| Response
Time |
Voltage
Up |
10% ~ 90%：< 100mS |
| Voltage
Down |
90% ~ 10%：< 100mS |
|
| Drift |
Voltage |
< 100ppm
+ 10mV |
| Current |
< 150ppm
+ 10mA |
|
| Interface
(Standard) |
RS-232 * |
|
| Interface
(Option) |
GPIB (IEEE 488.2) * |
|
| Power
Source |
AC 100V/120V/220V/240V+10%,
50/60Hz |
|
|
Accessories |
Power cord x 1,
Instruction manual x 1,
Test Lead x 1 set |
|
| Dimensions &
Weight |
108(W) x 140(H) x 315(D) mm, Approx. 4.8
kg |
|
|
* Unable to install RS-232 & GPIB
simultaneously
|
