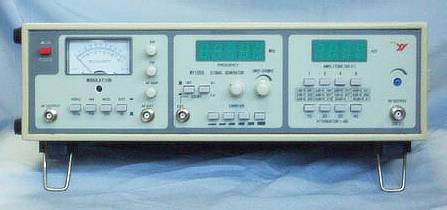

| WY1055 300MHz RF Signal Generator |
| Modulation |
| Frequency |
1MHz ~300MHz |
| Display |
5 digits LED |
| Resolution |
1Mhz ~30MHz, 1KHz |
| 30Mhz~300MHz, 10KHz |
| Accuracy |
0.1%±1 count |
| RF Output |
| Output level |
≥+10dB(>700mVrms) |
| No load |
>1V |
| Display |
4 digits LED, unit mV |
| Display precision |
≤2% (1MHz, 500mV) |
| Output adjustment |
1~105dB, 1dB resolution |
| Attenuation adjustment |
1~15dB ±0.5dB |
| 15~105dB ±1dB |
| Freq. response flatness |
±1.5dB |
| Harmonics |
≤-36dBc |
| Impedance |
50Ω |
| VSER |
±1.25 |
| Frequency Counter |
| Counter range |
10Hz~500MHz |
| Sensitivity |
50mVrms |
| Accuracy |
5x10-6 |
| Audio output |
| Frequency |
400Hz, 1KHz |
| Amplitude |
0~2Vrms |
| Distortion |
≤1% |
| Impedance |
600Ω |
| AM modulation |
| Depth |
0~100%, contrinuous adjustment(<30MHz) |
| Internal modulation frequency |
1KHz or 400Hz |
| External modulation frequency |
100Hz~10KHz |
| Amplitude |
≤1Vrms |
| Distortion |
±2% |
| FM modulation |
| Deviation |
0~100KHz |
| Internal modulation |
1KHz or 400Hz |
| External modulation |
10KHz~100KHz |
| Amplitude |
≤1Vrms |
|
| Dimension |
400(W)x122(H)x250(D)mm |
| Weight |
5Kg |
|
|
|
|
