Viewing head: Mechanical tube length 160mm,45° inclined,360° rotatable Monocular head.
Eyepiece: Wide field eyepiece-WF10X18mm
Objective: DIN 195mm achromatic objective 4X/0.10, 10X/0.25, 40XS/0.65,
100XS/1.25.
Nosepiece: Triple nosepiece.
Condense: N.A.0.65 condenser, Disc diaphragm with five-aperture, it is
easy to adjust llumination for viewing.
Stage: 120mm x 130mm plain stage
Illumination: Built-in illumination system as 230V/20W (6V/20W halogen
bulb) (CE and GS approved) or 115V/20W (6V/20W halogen bulb). the brightness
can adjust.
Focusing: Coaxial focus system with tension adjustment, with up-limited
fining focus precision 0.002mm
|
|
|

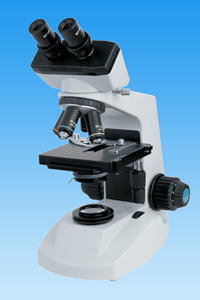

XSM-10
|
|
 |
|
Viewing head: Mechanical tube length 160mm,45° inclined,360° rotatable, pull-push binocular head.
Eyepiece: Wide field eyepiece-WF10X18mm
Objective: DIN 195mm achromatic objective 4X/0.10, 10X/0.25, 40XS/0.65,
100XS/1.25.
Nosepiece: Quadruple nosepiece
Condense: Spiral type Abbe.N.A.1.25 condenser with iris diaphragm and filter.
Stage: 120mm X 130mm plain stage
Illumination: Built-in illumination system as 230V/20W (6V/20W halogen bulb) (CE and GS approved) or 115V/20W (6V/20W halogen bulb). the brightness can adjust.
Focusing: Coaxial focus system with tension adjustment, with up-limited fining focus precision 0.002mm
|
|
|
XSM-20
|
 |
|
Viewing head: Mechanical tube length 160mm, 45° inclined, 360° rotatable, gemel binocular head.
Eyepiece: Plan eyepiece-P10
Objective: DIN 195mm achromatic plan objective; P4X, P10X, P40XS, P100XS.
Nosepiece: Quadruple nosepiece
Condense: Spiral type Abbe.N.A.1.25 condenser with iris diaphragm and filter.
Stage: 120mm X 130mm plain stage
Illumination: Built-in illumination system as 230V/20W (6V/20W halogen bulb) (CE and GS approved) or 115V/20W (6V/20W halogen bulb). the brightness can adjust.
Focusing: Coaxial focus system with tension adjustment, with up-limited
fining focus precision 0.002mm
|
|
|

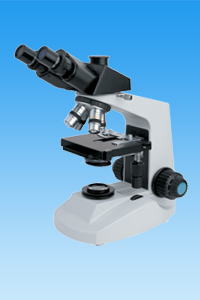

XSM-40
|
 |
|
Viewing head: Mechanical tube length 160mm, 45°inclined, 360°rotatable, gemel Trinocular head with Photo port.
Eyepiece: Plan eyepiece-P10
Objective: DIN 195mm achromatic plan objective; P4X, P10X, P40XS, P100XS.
Nosepiece: Quadruple nosepiece
Condense: Spiral type Abbe.N.A.1.25 condenser with iris diaphragm and filter.
Stage: 120mm X 130mm plain stage
Illumination: Built-in illumination system as 230V/20W (6V/20W halogen bulb) (CE and GS approved) or 115V/20W (6V/20W halogen bulb). the brightness can adjust.
Focusing: Coaxial focus system with tension adjustment, with up-limited fining focus precision 0.002mm
|
|
|
XSM-50
|
Specification:
| Model |
XSM-10 |
XSM-20 |
XSM-40 |
XSM-50 |
| Viewing head |
Monocular head |
pull-push binocular head |
gemel binocular head |
gemel trinocular head |
| Eyepiece Wide |
field WF10X18mm Plan |
Plan P10X |
Plan P16X |
| Objective |
DIN 4X,10X,40XS |
P4X,P10X,P40XS,P100XS |
P4X,P10X,P40XS,P100XS |
| Condenser |
N.A.0.65 condense |
Spiral type Abbe.N.A.1.25 condenser with iris diaphragm and filter |
| Illumination |
Built-out illumination system as 230V-12V/18W (CE and GS approved) or 115V-12V/18W halogen bulb. |
| Stage |
120mm*130mm plain stage |
125mm x 135mm movable double layers stage, move range 30mm x 30mm, focus
precision 0.1mm. |
| Focusing |
Coaxial focus system with tension adjustment, with up-limitedŁ¬fining focus
precision 0.002mm |
| Accessories |
More eyepiece and objective to choose.. |
|
