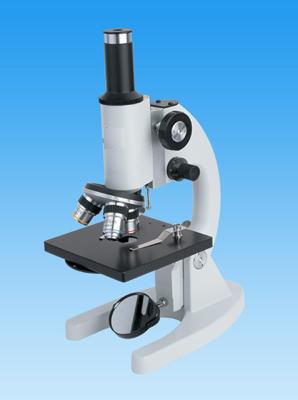

| XSP500X (XSP640X) |

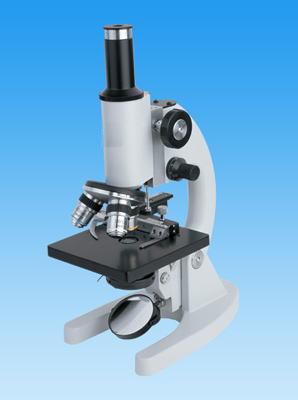

XSP1250X (XSP1600X) |
Features:
| § Mechanical tube length
160mm. |
| § Metal construction body
ensures many years use for students. |
| § Triple nosepiece can change objectives to
view at random. |
| § All models adopt three
achromatic objectives 4X,10X,40XS. |
| § Rack and pinion focusing adjustment with
slip clutch mechanism, avoid breaking slides and objectives by careless or
|
| |
overpowered
turning. |
| § Coarse and fine focus mechanism; Arm of
these biological microscope can incline up to 45”ćadjust angle at random to
observe |
| |
comfortably. |
| § It equip hermetic and convenient
Engineering plastics packing box. |
| § There are many accessories , you can
choose it by yourself. |
Specification:
| Model |
XSP-500X |
XSP-640X |
XSP-1250X |
XSP-1600X |
| Magnification |
500X |
640X |
1250X |
1600X |
| Eyepiece |
H10X,
H12.5X |
H10X,
H16X |
H5X, H10X,
H12.5X |
H5X, H10X,
H16X |
| Achromatic
objectives |
4X, 10X,
40XS |
4X, 10X,
40XS |
10X, 40XS,
100XS |
10X, 40XS,
100XS |
| Mechanical tube
length |
160mm |
| Mechanical stages
size |
110mm x 120mm plain stage |
| Coarse focus
range |
40mm |
| Fine focus
range |
1.2mm |
| Illumination |
Ų50mm plano and concave
mirror |
| Condenser |
No |
Abbe
N.A.1.25 with iris diaphragm and filter |
| Movable specimen
holder |
No |
Black holder(60mm x 30mm) |
| Accessories |
Multifarious eyepiece, Attachable illuminator;... |
|
