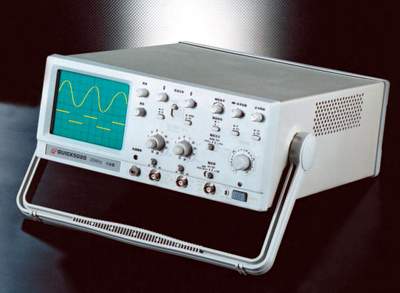

| QK5020, QK5040 |

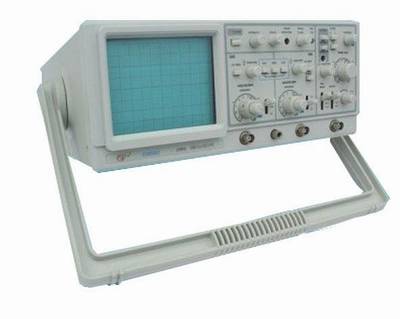

EM6560 |
|
|
20, 40, 60 MHZ 2-CHANNEL ANALOG OSCILLOSCOPE
|
|
QK5020(20MHz): $275.00
|
QK5040(40MHz): $437.00 |
EM6560(60MHz): $498.00 |
|
|
 |
|
|
|
Specifications:
Two measurement input channels, one
external trig channel.
l
Voltage
division: 5V to 5mV, X5.
l
Time
division: 0.2s to 0.2 us/DIV, X10 expansion.
l
Trig mode: auto, norm and
TV.
l
Trig source: input signal, line and external.
l
Trig
on rising or falling edge.
l
Coupling:
AC/DC/GND.
l
Two
probes and manual included.
l
One-year
warranty.
l
110V
power supply.
|
|
Specifications
|
QK5020 (20MHz)
|
QK5040 (40MHz)
|
EM6560 (60MHz), Channel 1 output with amplification
|
|
Vertical Deflection
|
|
Sensitivity and Accuracy
|
5mV-20V/div, 3%
|
5mV-5V
|
|
1mV-1V/div, 5%
|
|
|
(X5
times, CH1 only)
|
|
|
In
12 calibrated steps of 1:2:5 sequence
|
|
|
Band-width
|
DC(AC10Hz)-20Mhz
|
DC(AC10Hz)-40Mhz
|
DC-60MHz
|
|
Rise
Time
|
17.5ns
|
10ns
|
|
|
Input Coupling
|
AC,GND,DC
|
|
|
Input Impedance
|
1M
ohm/30pF
|
|
|
Maximum Input Voltage
|
400V
(DC+AC peak)
|
|
|
Vertical Mode
|
CH1,CH2,DUAL(CHOP,ALT),ADD,CH2
|
|
|
CH1
Signal Output
|
25mV/div, 50 Ω, 20Hz-10MHz(-3dB)
|
|
|
Horizontal
Deflection
|
|
|
Time
Base
|
0.2 uS-0.2S/div, 19 steps of 1:2:5 sequence
|
0.1uS-0.2S/div
|
|
Sweep Magnification
|
10 times (Max sweep rate 20nS/div)
|
5 times (Max sweep rate 20nS/div)
|
|
Accuracy
|
3%, 5% at 10X
times
|
|
Trigger Mode
|
Auto, Norm, TV-V, TV-H
|
|
Trigger Source
|
VERT(dual, alt), CH1, Ext, Line
|
Two channels trig, peak trig |
|
Trigger Coupling
|
AC,DC
|
|
Trigger Slope
|
Rising, Falling edges
|
|
External Trigger Input Impedance
|
1M
Ω
|
|
Sensitivity
|
20Hz-2MHz: 0.5
div
|
|
|
2MHz-20MHz: 1.5 div
|
|
|
|
TV
Signal: 1 div
|
|
|
X-Y Operation
|
|
|
Input
|
X
axis: CH1
|
|
|
Y
axis: CH2
|
|
|
Bandwidth
|
X
axis:
DC-500KHz(-3dB)
|
|
|
Phase Difference
|
<
3 degree
|
|
|
Reference
Clock
|
|
|
1KHz 0.5Vp-p
rectangular wave
|
|
|
Others
|
|
|
Power Supply
|
AC110V, 10%
|
|
Power Consumption
|
45W
|
|
|
Dimension
|
316x132x410(mm)
|
|
One year warranty. Two probes and user's manual included.
|
 |
10 MHZ MINI ANALOG
OSCILLOSCOPE
List Price: $250.00
Sale Price: $165.00
Specifications:
l
10MHz bandwidth.
l
One measurement input channel, one external trig channel.
l
Voltage division: 5V to 5mV.
l
Time division: 0.1s to 0.1 us.
l
Trig mode: auto, norm and TV.
l
Trig source: input signal, line and external.
l
Trig on rising or falling edge.
l
Coupling: AC/DC/GND.
l
One probe and manual included.
l
Size: 9"x3.5"x11".
l
Weight: 6 lb.
l
110V power supply.
|
|

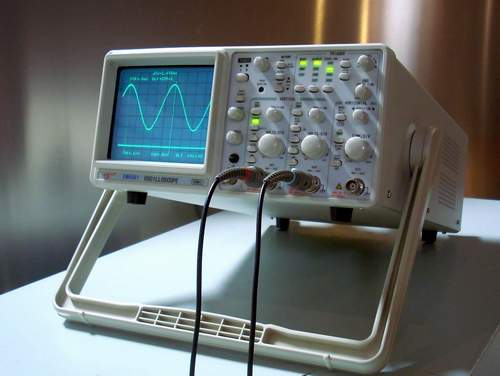

CRT Read-out Analog Oscilloscopes
|
Model
|
 |
| EM6021 |
EM6041 |
EM6061 |
| 20Mhz |
40Mhz |
60MHz |
|
2 signal channels, one external trig channel
Micro controller based, save and recall 10 different panel settings
High accurate 6-digits counter
Displays voltage, time, frequency etc. directly on screen
False operation alarm
Y-axis sensitivity: 1mV/div-20V/div
X-axis sweep time:
0.2uS/div-0.5S/div
MAG rate: x5,x10,x20
Dimension: 28(W)x13(H)x41(D) (cm)
Weight: 4.2kg
|
|
|
|
