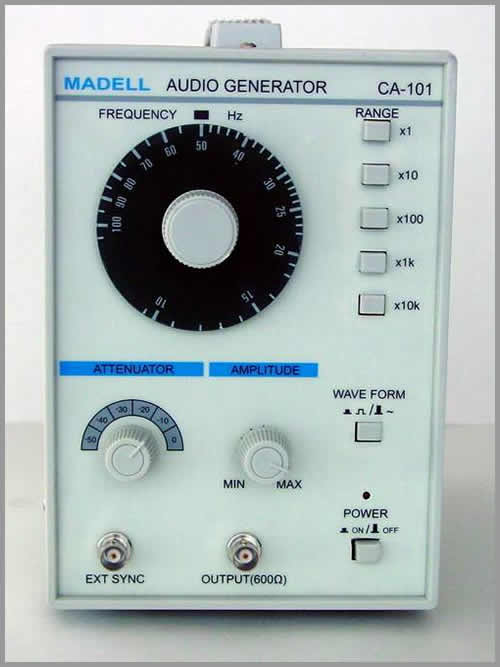

CA101 1Mhz Audio Function Generator |
Output frequency: 10Hz-1Mhz
sine waveform > 5Vrms
square waveform > 10Vp-p
external sync 3% freq
Weight: 8.0 lbs.
|
Sale Price: $95.00  |
 |
|

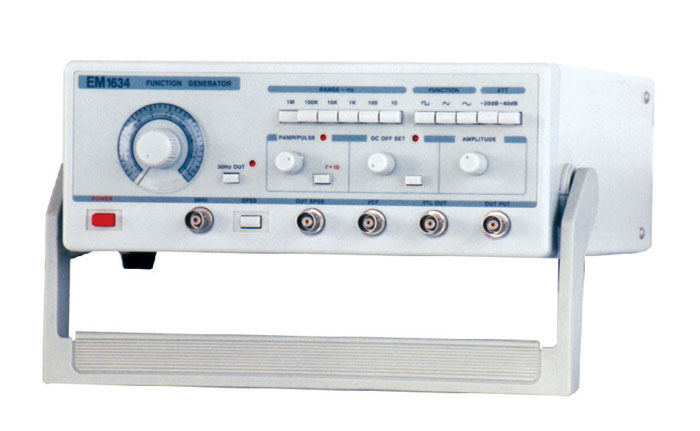

EM1634 |
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, TTL level, single pulse, 50Hz
fixed sine
Output impedance: 50Ω
Amplitude: 5mV-25Vp-p
Square rise-time: ≤50nS
VCF: 0V-10V 1:100 with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg |
| Price: $96.00 |
 |
|

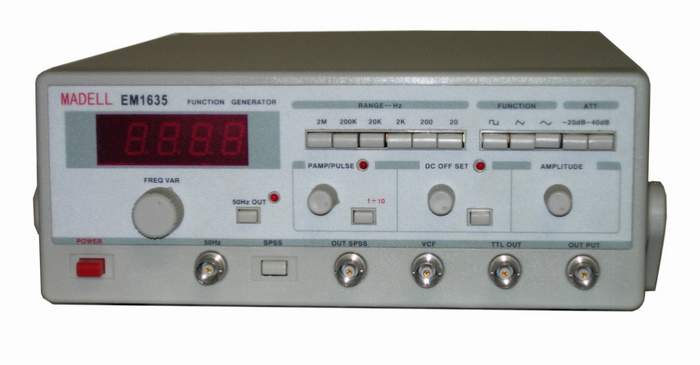

EM1635 (Display With LED) |
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, TTL level, single pulse, 50Hz
fixed sine
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
Square rise-time: ≤50nS
VCF: 0V-10V 1:100 3.5 digit display frequency with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg. |
| Price: $146 |
 |
|

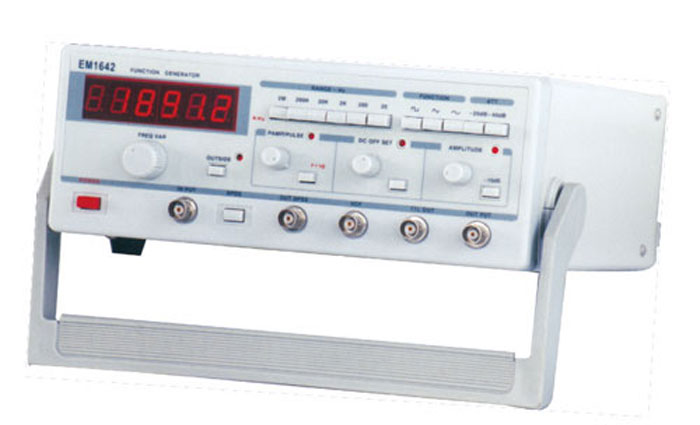

EM1642 (With 10MHz Frequency Counter) |
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL levle, single pulse
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
Square rise-time: ≤50nS
VCF: 0V-10V 1:100
EXT measurement frequency range: 0.1Hz-10MHz with protective circuit
Size::32x24x10(cm)
Weight: about 3kg |
|
 |
|

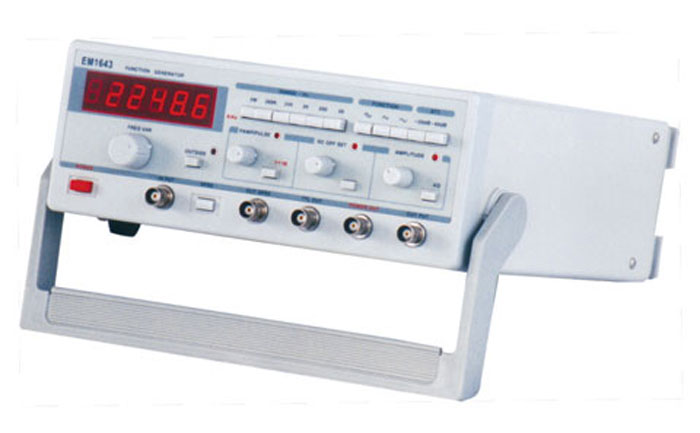

EM1643 |
Normal output Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
Power output Frequency: 0.2Hz-200KHz
Output impedance: 4O
Output amplitude(No load): ≥25Vp-p
Output power: ≥4.5W
EXT measurement frequency range: 0.1Hz-10MHz with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg |
|
 |
|

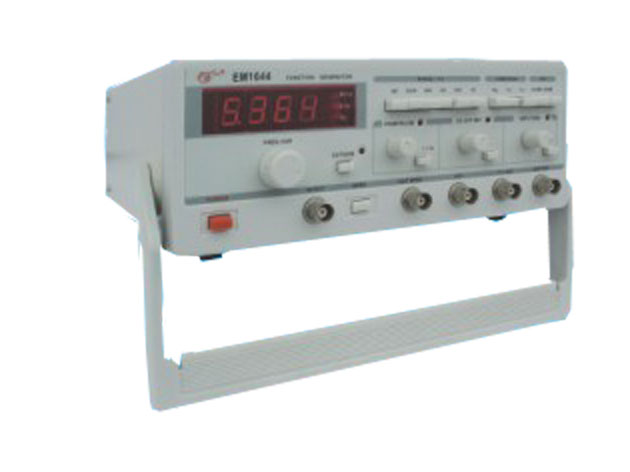

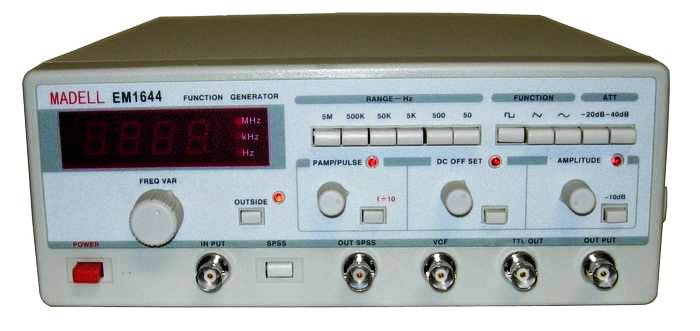

EM1644 |
Frequency range:0.5Hz-5MHz
Output Waveform: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
ATT: 20dB+40dB
EXT measurement frequency range: 0.1Hz-10MHz with protective circuit
Size: 32x24x10(cm)
Weight: about 3kg |
| Price: $195 |
 |
|
EM1645 |
Frequency range:0.1Hz-1MHz
Output Waveform: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Output impedance: 1Ω
Amplitude: 1mV-25Vp-p
ATT: 20dB+40dB
Power output range: 0.1Hz-100KHz with protective circuit.
Size: 32x24x10(cm)
Weight: about 3kg |
 |
|

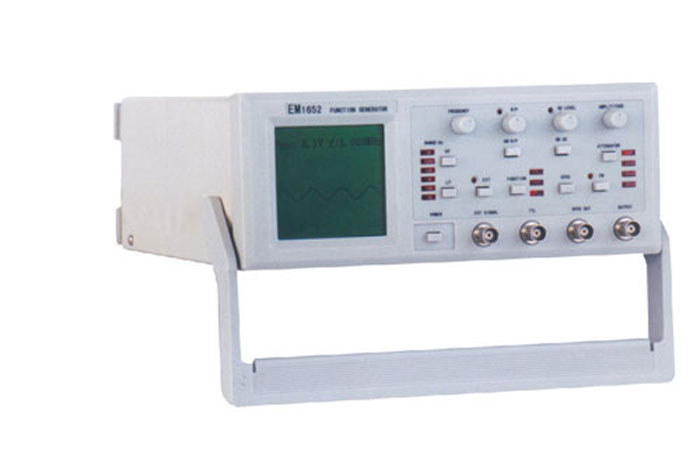

EM1652, with built-in oscilloscope |
Frequency range: 0.2Hz-2MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Amplitude: 1mV-25Vp-p
Output impedance: 50Ω
FM: 1:50
Display: Frequency, Amplititude, Waveform
EXT measuring function
Size:: 32x24x10(cm)
Weight: about 2kg
The built-in oscilloscope has limited functions and displays internal waveforms
as well as external signals. |
|
 |
|

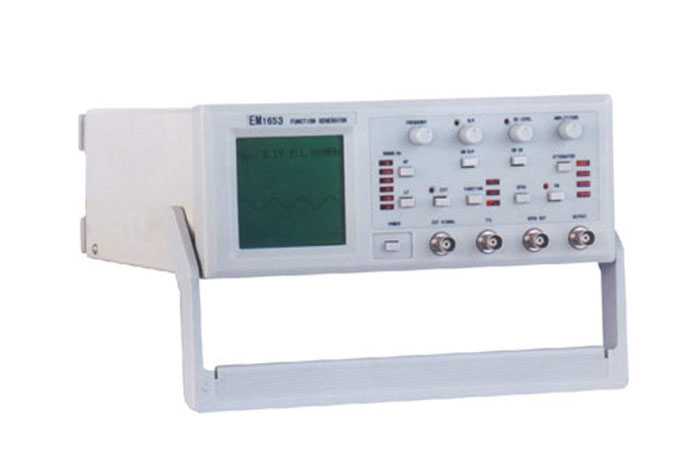

EM1653, with built-in oscilloscope |
Frequency range: 0.2Hz-200KHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Output impedance: 50Ω
Amplitude: 1mV-25Vp-p
Power output Frequency: 0.2Hz-200KHz
Output impedance: 4Ω
Output amplitude(no load): ≥25Vp-p
Output power: ≥4.5W
FM: 1:50
Display:Frequency, Amplititude, Waveform
EXT Measuring function
Size:: 32x24x10(cm)
Weight: about 2kg
The built-in oscilloscope has limited functions and displays internal waveforms
as well as external signals. |
|
 |
|

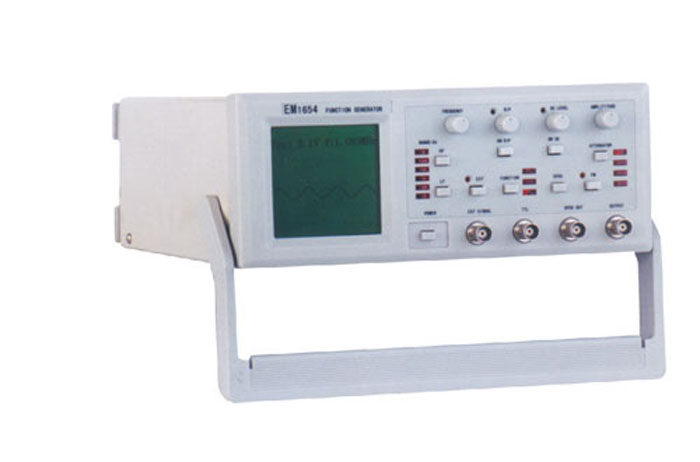

EM1654, with built-in oscilloscope |
Frequency range: 0.5Hz-5MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Amplitude: 1mV-20Vp-p
Output impedance: 50Ω
FM: 1:50
Display:Frequency, Amplititude, Waveform
EXT Measuring function
Size: 32x24x10(cm)
Weight: about 3kg
The built-in oscilloscope has limited functions and displays internal waveforms
as well as external signals. |
|
 |
|

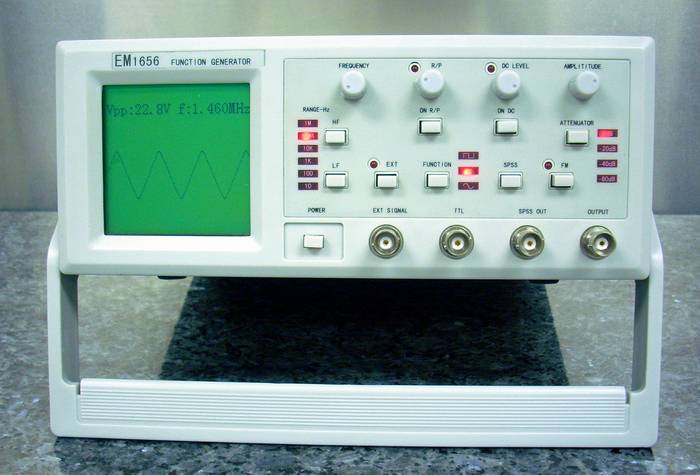

EM1656, with built-in oscilloscope |
Frequency range: 1Hz-10MHz
Output Wave: Triangle, square, sine, pulse, ramp, TTL level, single pulse
Amplitude: 1mV-20Vp-p
Output impedance: 50Ω
FM: 1:50
Display: Frequency, Amplititude, Waveform
EXT Measuring function
Size:: 32x24x10(cm)
Weight: about 3kg
The built-in oscilloscope has limited functions and displays internal waveforms
as well as external signals.
|
| Price: $299 |
|
