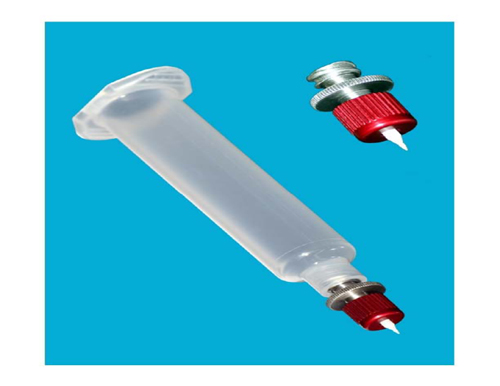

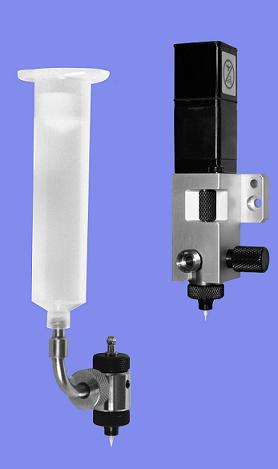

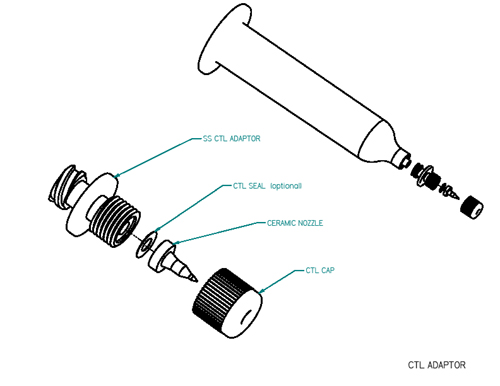

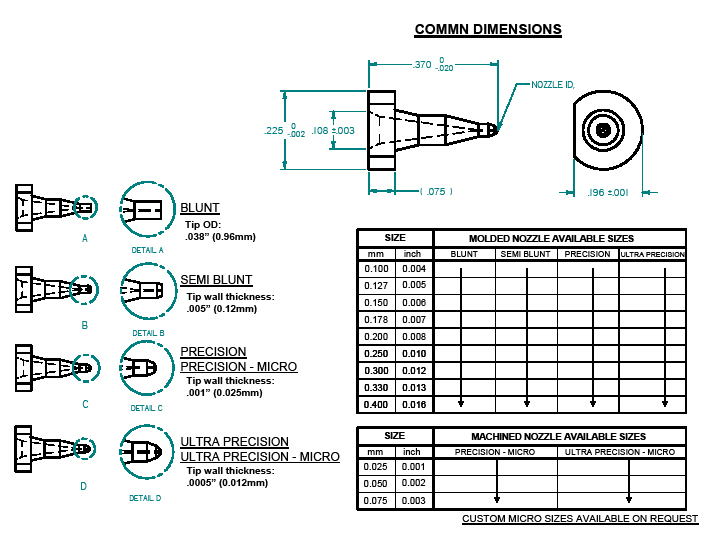

Madell QK982B Solder Paste Dispenser Price Cut Sale Price: $324.50 Micro Dispensing Nozzles This dispenser can be used to evenly apply solder paste on to fine IC pads on circuit boards, a necessary tool for prototyping or repairing. Injection dosage and time can be controlled by adjusting the air pressure, choosing an appropriate duration and needle. Mini foot pedal for convenient operation. Various nozzles to suit different needs. User's manual. Specifications: l         Timing:  0.01-1S; 1-10S; 2-20S; 3-30S programmable. l         Accuracy:  0.5%. l         Mini injection dosage: 0.01mL. l         Input air pressure: 2.5-7bar(35-100psi). l         Output air pressure: 0.7-7bar(1-100psi). l         Dimension: 238x150x60mm. l         110V power supply. 220V model also available. Ceramic Nozzles Designed for electronic and semiconductor dispensing. Ideal for fluids such as solder paste, silver filled adhesives, UV resins, under fills glob tops, and other materials. The advantages include: very high quality and precision nozzle construction - particularly around the outlet port results in better quality and faster dispense. The conical design resulted in less clogging and lower pressure. The construction is zirconia (ceramic) and is extremely resistant to wear and abrasions caused by filler in the fluids. The result is a life that can be 10X longer than a stainless steel construction. Outlet port sizes down to 1mil. The difference in the tip construction allows for a very affordable nozzle. Dispensing in close quarters may require thinner walls and semi blunt, precision and ultra precision options allow for expense to be spent only if required. Nozzle ID = .004" (0.1mm) Tip wall thickness = .0005"(0.0127mm) CTL Adaptor w/ syringe CTL Adaptor Drawing size Molded nozzle prices mm inch blunt semi blunt precision untra precision 0.100 0.004 $37.5 $67.5 $82.5 $100 0.127 0.005 $37.5 $67.5 $82.5 $100 0.150 0.006 $37.5 $67.5 $82.5 $100 0.178 0.007 $37.5 $67.5 $82.5 $100 0.200 0.008 $37.5 $67.5 $82.5 $100 0.250 0.010 $37.5 $67.5 $82.5 $100 0.300 0.012 $37.5 $67.5 $82.5 $100 0.330 0.013 $37.5 $67.5 $82.5 $100 0.400 0.016 $37.5 $67.5 $82.5 $100 CTL adaptor $105 CERAMIC NOZZLE ON ADAPTOR PLATE CERAMIC NOZZLE ON ADAPTOR PLATE CERAMIC NOZZLE WITH S.STL STAND-OFF CERAMIC NOZZLE WITH S.STL STAND-OFF AMD3 screw paste pump with ceramic nozzle Large barrel(comes with the dispenser), 30CC Inner diameter: 23mm, 7/8" $6.00 Medium barrel, 10CC Inner diameter: 15mm, 5/8" $4.00 Adaptor for large barrel $28.00 Adaptor for medium barrel $25.00 Dispensing needles and tips, total 10 per bag. $24.80 Compressed air hose $25.50 Solder Paste $29.50
