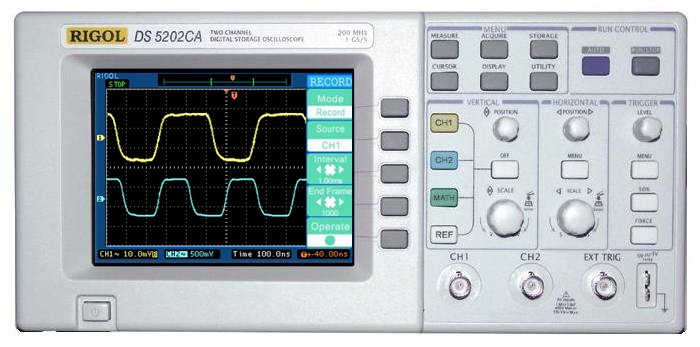

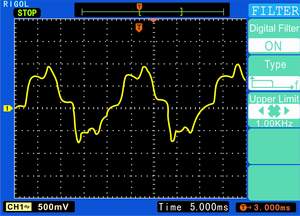

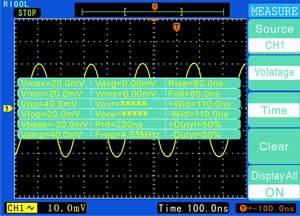

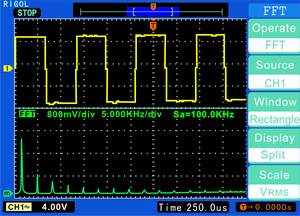

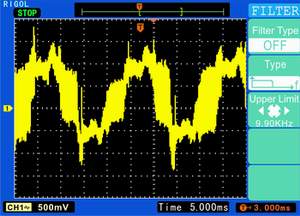

DS5000 Rigol Digital Oscilloscopes Rigol digital oscilloscopes provide outstanding performances at affordable prices. COLOR LCD DSO MONO LCD DSO DS 5000CA series DS 5000MA series DS 5000C series DS 5000M series 2 input channels for all models 200Mhz 150Mhz 100Mhz 60Mhz 40Mhz 25Mhz 1GS/S, Color DS5202CA $1770 DS5152CA $1535 DS5102CA $1199 DS5062CA $999 1GS/S, Mono DS5202MA $1690 DS5152MA $1425 DS5102MA $1075 DS5062MA $850 250MS/S, Color DS5152C $1200 DS5102C $975 DS5062C $850 250MS/S, Mono DS5152M $1075 DS5102M $804 DS5062M $730 DS5042M $618 DS5022M $524 Built-in Digital Filters The DS5000 series oscilloscopes have 4 built-in digital filters(low pass, high pass, band pass and band reject). A convenient function to analyze and measure real world noisy signals. 20 Auto-Measurements Math Functions DS5000 series features 20 auto-measurements: 10 voltage measurements: Vp-p, Vamp, Vtop, Vbase, Vmax, Vmin, Vavg, Vrms, overshoot and preshoot; 10 time measureements: frequency, +pulse width, -pulse width, period, rise time, fall time, +duty, -duty, delay 1-2(rise) and delay 1-2(fall). DS5000 provides +, -, x, ÷ and FFT math functions. They can be used to perform different analysis and measurements. Waveform Recorder Pass/Fail Function Recording time can be adjusted from 1ms to 1000s. Record lenght varies from 1 to 1000 frames. The pass/fail function is based on a user defined rule. It can be used to find any abnormal signals, or to trig the waveform recorder and capture desired events. DS5000 Extension Modules EM5-CM GPIB, RS-232 and Pass/Fail EM5-COM GPIB and RS-232 EM5-P/F Pass/Fail PC Control and Aanlysis Software •Display captured waveforms, data and measurements. •Control the oscilloscope locally or over the network. •Export the waveform in "BMP" fromat. •Save data into "TXT" or "Excel" files. •Print waveforms Accessories Two 1:1 and 10:1 probes User's manual Tools bag
