SURFACE MOUNT EQUIPMENT FOR PROTOTYPES AND SMALL PRODUCTION



Manual Pick and Place Machine SMT-PLC-2

$1,850.00


New designed manuaul pick and place machine for prototype printed circuit board assembling.
  • Comes with 10 SX-2 8mm feeders, one USB camera, a loose part tray, hand rest pad, small vacuum pump and foot padel switch, tape reel holder
  • USB video camera moves with the machine head and looks at the pick up nozzle
  • Maximum feeder capacity 20 (8mm)
  • Availale SX-2 feeders: 8mm, 12mm, 16mm , 24mm
  • Full 360 degree rotation
  • The SX-2 feeder can be pushed on to advance and to peel the tape at the same time. Tape advance distance is controlled by how much the feeder is pressed
  • Part on the tape is picked up and placed on the PCB manually
  • Comes with a small quite 12V DC vacuum pump
  • Manufacturing time one week
  • Vacuum nozzle is the same as used on our automatic machines for better performance (clip nozzles)

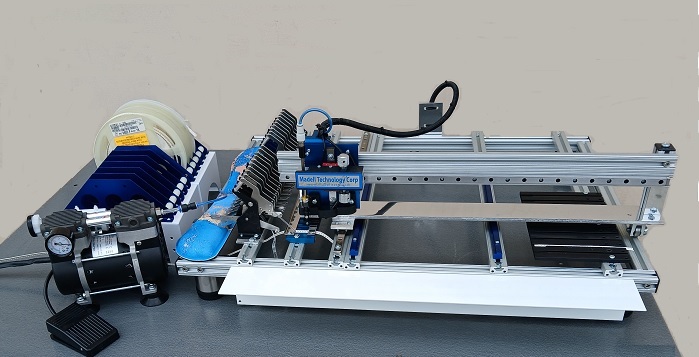

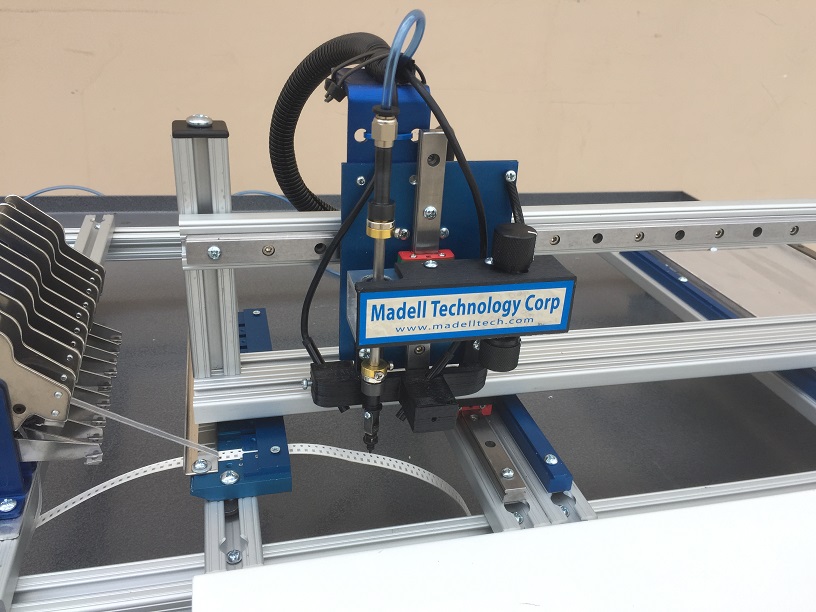

SMT-PLC-2 head and feeders



Youtube video for SMT-PLC-2 machine
